W-750SV

The W-750SV vortex submersible pump is designed for domestic sewage and waste water containing human sewage and water soluble toilet paper with soft solids of maximum 30 – 35mm Ø and maximum 2 – 3% concentration by volume.

  • Vortex impeller
  • Double mechanical seal
  • comes with built in float switch
Feautres:

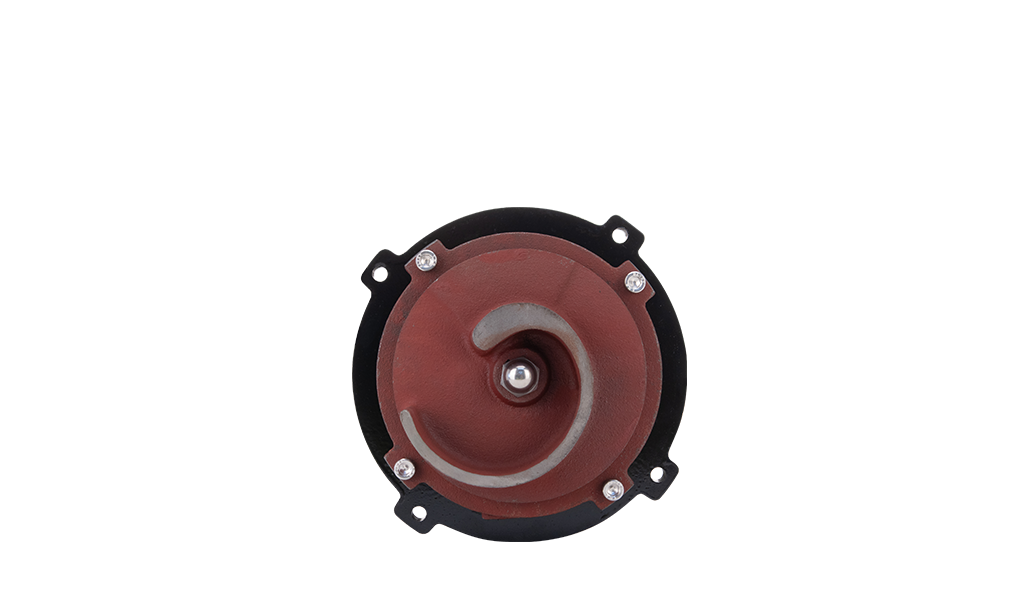

  • Advanced Vortex Impeller design allows soft particles of 30 – 35mm to pass without any blockage
  • Vortex impeller vanes have good efficiency and reliability of performance
  • Triplex sealing Double Mechanical Seal in oil bath plus an oil seal arrangement for protection of motor from any ingress of sewage or wastewater
  • Unique epoxy cable sealing protects from water entering the motor
  • Heavy-duty upper and lower ball bearings ensure smooth operation and support axial load/thrust
  • Both pumps come with a built-in float switch for automatic liquid level operation
    All pumps supplied with base mounting.
  • Auto-coupling option available on request

Pump performance chart

The W-750SV is Not suitable when liquid contains hard solids i.e. sand, stones, gravel, wood, stringy material like clothes, plastic bags, sanitary pads, nappies or tough non water soluble papers like wet wipes, cardboard or rubber etc.

Variant Item Code Stock
W-750SV
W-750SV
In Stock
kW/HP 0.75 / 1.0 Volts/Phase 230 / 1 Ph
Full Load Current (Amps) 7 Outlet (mm) 50
Weight (kg)
 20 Min Sump Dimension (mm) 700 x 700 x 700
Cable Length  10m Dimensions (mm) 463 H x 155 W x 240
