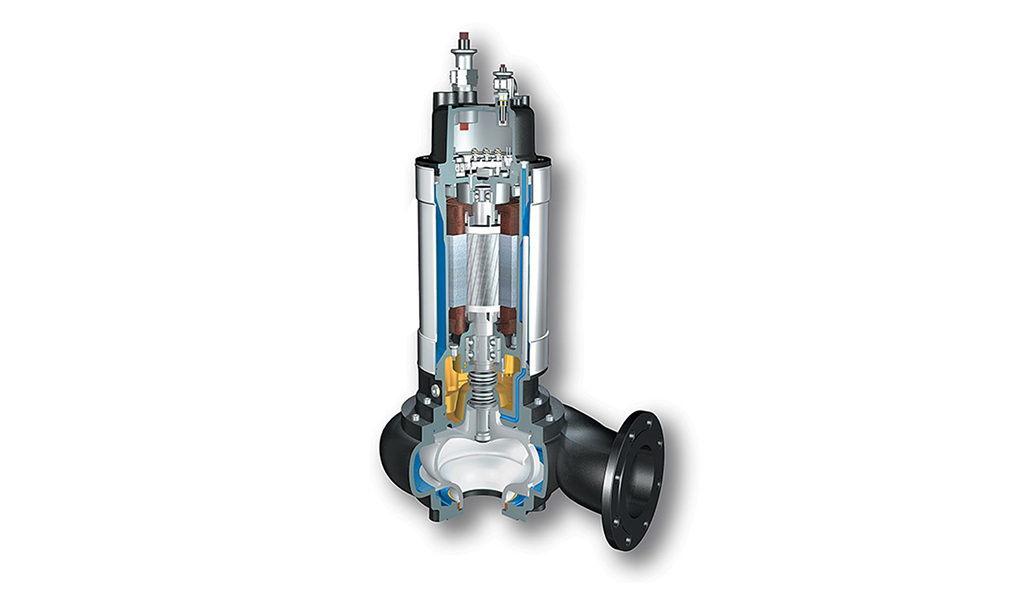

Homa MXS

Pump is suitable for pumping surface water, sewage, effluents, and sludge containing soft solids.



Spherical Clearance 80 - 100 mm Motor power P1 1,7 - 43,0 kW
Discharge size DN 80 / DN 100 / DN150 Motor power P2 0,0 - 25,4 kW
Max head 4,8 - 42,2 m Speed 2900 / 1450 / 960 rpm
Max flow 72,0 - 390,0 m³/h




Materials

Motor housing (Grey cast iron EN-GJL-250), Pump housing (Grey cast iron EN-GJL-250), Impeller (Grey cast iron EN-GJL-250), Wear ring (Bronze), Motor shaft (Stainless steel 1.4104), Bolts (Stainless steel), Elastomeres (Nitrile Rubber), Mechanical seal on medium side (SiC / SiC), Mechanical seal on motor side (SiC / SiC), Upper Bearing (Deep Groove Ball Bearing).

Pumped Liquid

Max. medium temperature: 40 °C.

Motor

Three phase electric motor with 2-, 4-, or 6-pole winding. Insulation class H (180 C), Protection IP 68. With thermal sensor in the winding as standard.

Explosion Protection

In addition to the standard version, selected motors are also available explosion proof according to ATEX EX II 2 G Ex c d II B T4,(T3).

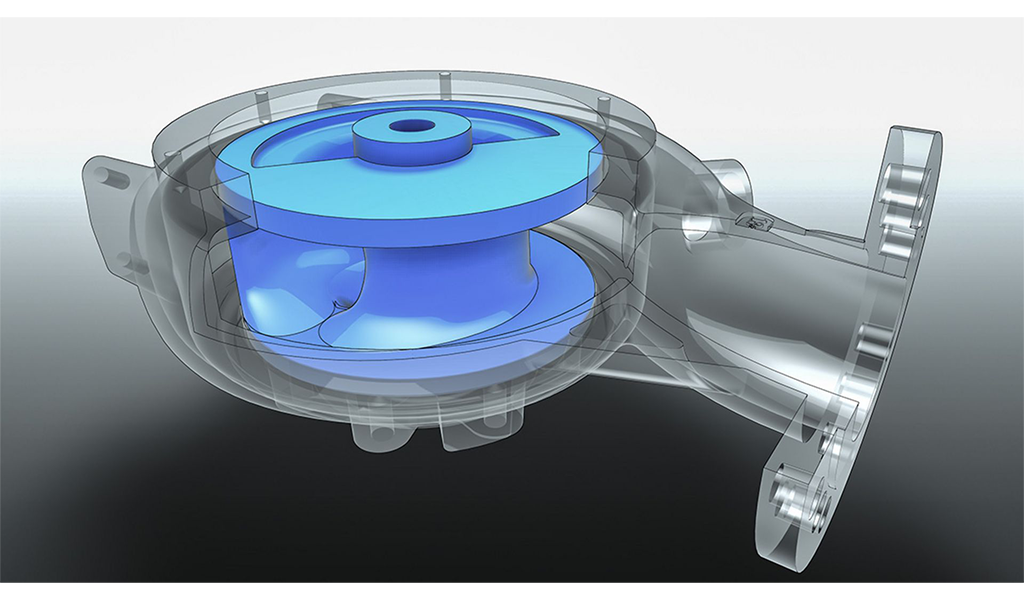

Enclosed single-channel impeller (MXS)

For dirty and muddy fluids with solid and long-fibre fractions. New hydraulic generation MXS with non-clogging impellers and efficiencies of over 80%.
